ENVE Foundation Collection Carbon Wheels

ENVE is pleased to introduce the Foundation Collection, a new line of U.S. made carbon wheels built on ENVE’s core values and technologies. As such, each model in the Foundation Collection was designed for best-in-class performance, is handcrafted in Ogden, Utah, and like all ENVE products, exists to improve the ride experience.

Wheels in the Foundation Collection will retail for $1600 USD, $2899 AUD, $2250 CAD, £1800 and €1800.

“A more accessibly priced wheel collection has been on our project list for many years now. At ENVE, we pride ourselves on delivering a top-shelf product to core riders. However, for us to hit our price and performance targets, we had to follow a plan and respect the process. Part of this was to achieve greater manufacturing efficiencies. We’ve been in our new state-of-the-art carbon manufacturing facility for just over three years now and roughly a year ago, we achieved levels of efficiency in manufacturing that allow us to both produce and deliver the volumes the Foundation Collection is creating while maintaining current production of our premium lines,”

ENVE’s Managing Director,Jeremy Venz.

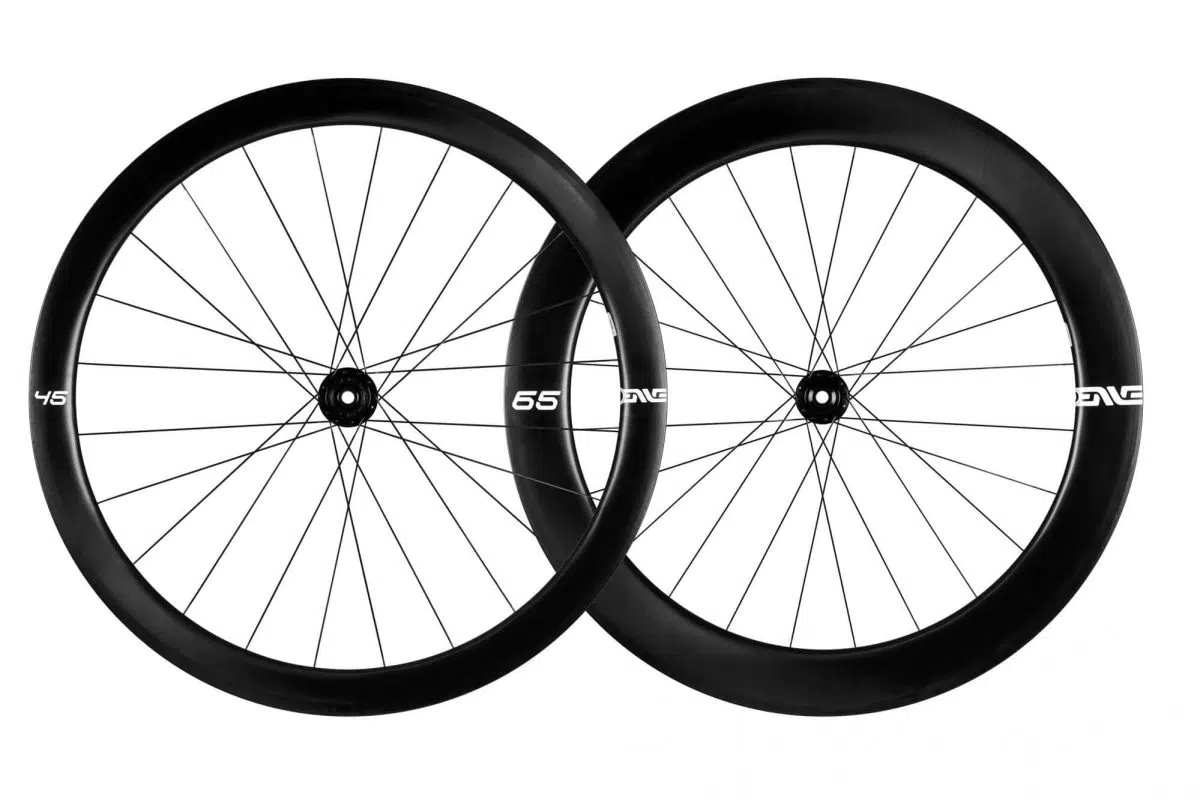

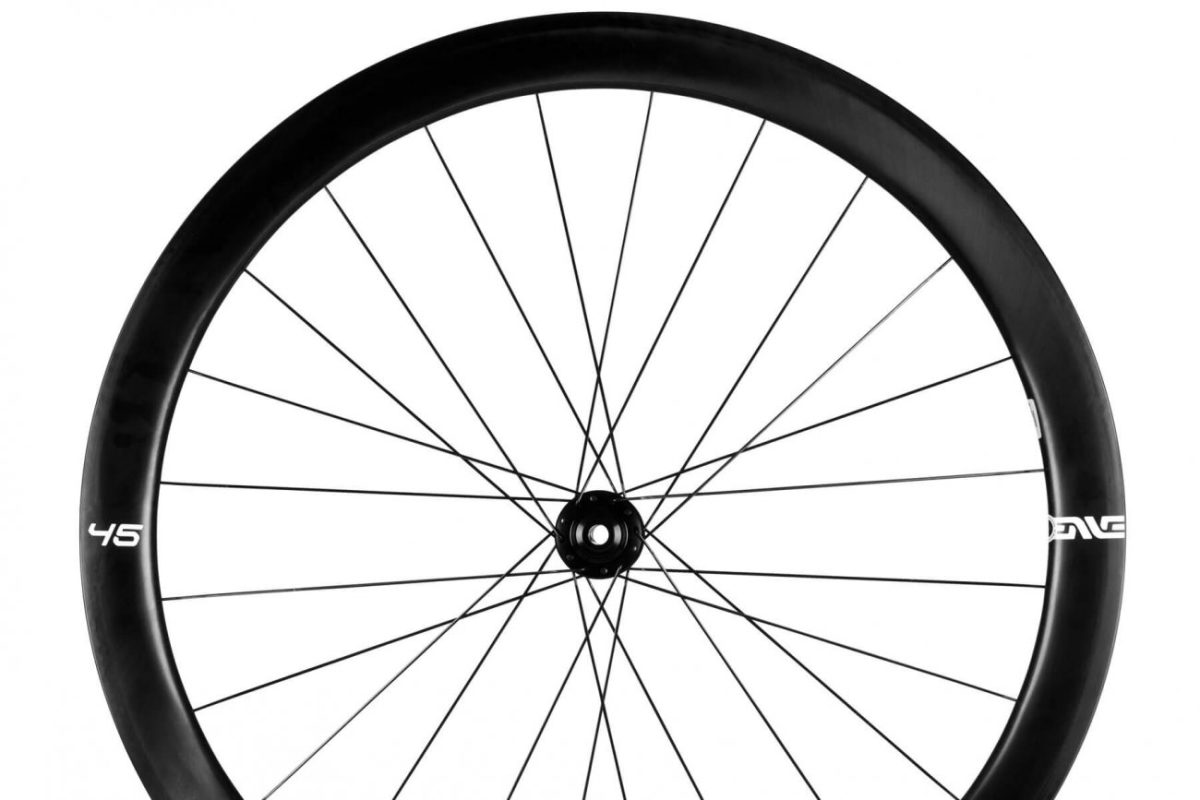

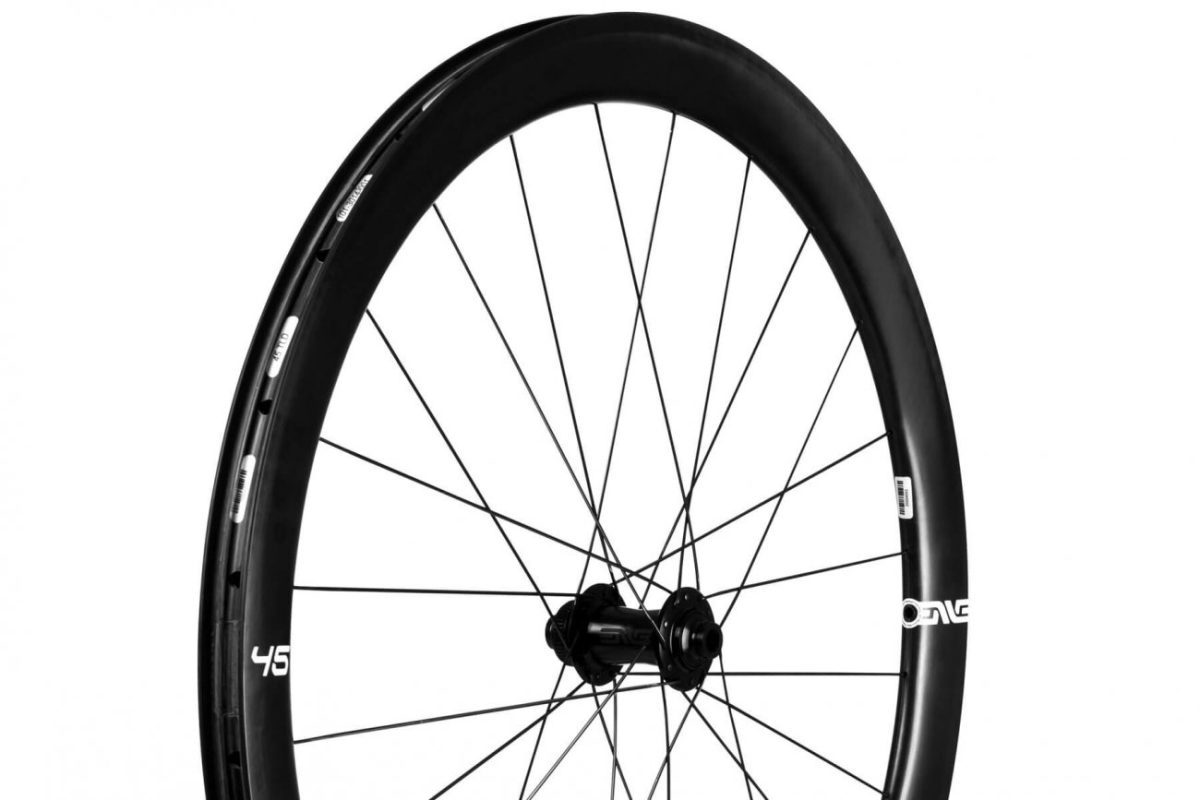

The first installments of the Foundation Collection come in the form of two purpose built aero road wheels developed to meet the demands of the modern road cyclist and triathlete – the ENVE 45 and 65. The ENVE 45 and 65 are named after their respective rim depths and pay tribute to the original ENVE road wheels that were introduced to the aftermarket in 2007. ENVE Foundation Road Technologies.

Each wheel in the Foundation Collection features a host of proprietary technologies essential to achieving the best-in-class designation.

ENVE Foundation Aero Technology

The ENVE 45 and 65 benefit from a knowledge base established over more than a decade’s worth of aero wheel development of the premium Smart ENVE System (SES) lineup. Given the advantages of efficiency and stability that good aerodynamic design brings, ENVE states that good aero performance is a fundamental right for all of ENVE’s customers.

ENVE Foundation Collection
The ENVE 45 and 65 are named after their respective rim depths and pay tribute to the original ENVE road wheels that were introduced to the aftermarket in 2007

To achieve the low drag, high stability performance that the ENVE 45 and 65 rim shapes provide, ENVE has taken cues from its SES rim shape development with the major difference between Foundation and SES being that the Foundation rim geometries are matched front to back whereas SES wheelsets, feature rim shapes specifically optimized for the front and rear positions on the bike. As a result of this development, the ENVE 45 and 65 deliver drag reductions similar to, or better than, the competition’s wheels that are well upmarket in price.

The ENVE 45 and 65 are most efficient when paired with a 25mm (labeled) tubeless road tire. For riders wishing to run larger 28mm tires, aerodynamic losses are minimized by the efficiency of the rim’s shape, and losses are readily recovered by the rolling efficiencies gained from the higher volume tire.

Tubeless Compatibility

Like aerodynamics, the performance that tubeless can provide makes it a foundational technology for all ENVE wheels. The ENVE 45 and 65 feature a 21mm internal rim width and a hookless bead profile. Hookless has been a hot topic in recent months. According to ENVE this is why they choose a hookless design for their wheels.

“Road tubeless is still a fairly misunderstood technology. Riders understand that there are performance advantages to the system, but don’t always understand how a good tubeless system is designed to work. Essentially, for a trouble-free tubeless setup, the rim and tire interface need to be precise. We choose hookless because it allows us to consistently produce the critical dimensional tolerances tubeless requires,”

ENVE’s VP of R&D, Scott Nielson.

Given the disparate rate at which rim and tire technology have progressed in recent times, ENVE developed an in-house tire qualification test to determine tire compatibility with the brand’s SES AR line which also features a hookless design. To aid the consumer through their tire purchasing decision and setup, ENVE has provided a list of available tires that have been tested and approved for use with the new wheels. For a tire to be approved and recommended for use, it must pass a maximum inflation test where the tire is inflated to 1.5x the max pressure of the rim or tire, whichever is lowest.

Enve Foundation Collection Road at a Glance

AERO Technology & Rim GeometryFoundation – Same rim geometries front to back, derived from SES rim shapesSmart ENVE Sytem – Unique rim shapes front to back for positional aero optimization
Tubeless CompatibilityYesYes
Anti-pinch Flat TechnologyWide Hookless BeadSES – N/A
SES AR – Wide Hookless Bead
Molded Spoke Holes & Valve StemYesYes
SpokeSappin CX SprintSappin CX Ray
Hub ModelENVE Foundation Road HubENVE Premium Alloy, King, 19 Hydra
Hub BearingsNTN Premium SteelNTN Premium Stainless Steel
Wheelset Weights (ENVE Hubs)ENVE 45 – 1541g
ENVE 65 – 1621g
SES 3.4 – 1425g
SES 5.6 – 1553g
SES 7.8 – 1651g
WarrantyLifetime Incident Protection & 5 Year Factory WarrantyLifetime Incident Protection & 5 Year Factory Warranty
MSRP Range $USD$1,600$2,500 – $3,000

Additionally, ENVE has a tire pressure chart to aid customers in achieving their optimal tire pressures at enve.com/tirepressure.

Wide Hookless Bead

The ENVE 45 and 65 also feature ENVE’s patent pending Wide Hookless Bead technology.

The ENVE 45 and 65 also feature ENVE’s patent pending Wide Hookless Bead technology. This technology is defined as a wide surface at each of the rim’s leading edges. By creating a larger surface area at the rim’s leading edge, impacts from curbs, potholes, and debris are distributed over a larger area, reducing the likelihood of pinch-flatting tubed and tubeless tires alike. Additionally, this feature increases the rim’s impact toughness.

Patented Molded Spoke and Valve Stem Hole Technology

Patented Molded Spoke and Valve Stem Hole Technology (Patent #US 8,313,155) – ENVE’s patented process of molding spoke and valve stem holes results in rims that are stronger and lighter. Because carbon fiber gets its strength from continuous fibers, ENVE routes the fibers around the hole without cutting them which increases the strength of each spoke hole. This technique pays large dividends in the final product by creating a lighter and stronger rim.

Enve Foundation Collection Road Hub

The ENVE Foundation Collection 45 and 65 are built on a new road hub that utilizes the same internals as ENVE’s premium hub offering, but with a simplified hub-shell. Like their premium hub offering, the Foundation Road Hub utilizes the tried and proven ID360 40t ratchet drive mechanism and ENVE’s maintenance free automatic preload system aptly referred to as Perfect Preload™. This system eliminates the possibility that the hub will develop bearing play and slop over time. It also eliminates the need for the consumer to adjust preload on their own as ride time is accumulated. Where bearings are concerned, the Foundation Road Hub features premium grade, fully sealed NTN steel bearings where ENVE’s premium hub line features a custom NTN stainless-steel bearing for even greater longevity.

Enve Foundation Collection Road Hub

Enve Lifetime Incident Protection and 5 Year Warranty

Services like ENVE’s incident protection program and warranty can influence a customer’s purchase decision as much as the product’s features, benefits, and price. The 5 Year Warranty protects buyers from defects in materials and workmanship. The Lifetime Incident Protection program protects owners from damage caused to their wheels while riding, crashing, or transporting their bikes. Proof of purchase is required.

The Foundation Collection’s ENVE 45 & 65 model road wheel models are available now from ENVE.com and retail partners worldwide.
